Introducing the our RF PCB built on Rogers RT/duroid 6002 materials. RT duroid 6002 is a high-performance microwave material engineered for complex microwave structures. With its low dielectric constant (Dk) and exceptional mechanical and electrical properties, this PCB is designed to deliver reliable performance in multi-layer board constructions. Whether you're working on phased array antennas, radar systems, GPS antennas, power backplanes, or beam forming networks, the RT/duroid 6002 PCB is the ideal choice for your high-frequency applications.
Key Features of the RT/duroid 6002 PCB:
1. Superior High-Frequency Performance:
- Low Dielectric Constant (Dk): With a Dk of 2.94 +/- .04, the RT/duroid 6002 PCB ensures precise signal integrity and reliable high-frequency performance.
- Low Dissipation Factor: Boasting a dissipation factor of .0012 at 10GHz, this PCB minimizes signal loss, enabling efficient and high-speed data transmission.
- Excellent Thermal Stability: With a low thermal coefficient of Dk at 12 ppm/°C, the RT/duroid 6002 PCB maintains stable performance even in varying temperature conditions.
- High Thermal Conductivity: The PCB's thermal conductivity of 0.6 W/m/k helps dissipate heat effectively, ensuring optimal performance in demanding applications.
- Minimal Moisture Absorption: With a moisture absorption rate of only 0.02%, this PCB is well-suited for high-humidity environments, providing long-term reliability.
| RT/duroid 6002 Typical Value |
| Property | RT/duroid 6002 | Direction | Units | Condition | Test Method |
| Dielectric Constant,εProcess | 2.94±0.04 | Z | | 10 GHz/23℃ | IPC-TM-650 2.5.5.5 |
| Dielectric Constant,εDesign | 2.94 | | | 8GHz to 40 GHz | Differential Phase Length Method |
| Dissipation Factor,tanδ | 0.0012 | Z | | 10 GHz/23℃ | IPC-TM-650 2.5.5.5 |
| Thermal Coefficient of ε | +12 | Z | ppm/℃ | 10 GHz 0℃-100℃ | IPC-TM-650 2.5.5.5 |
| Volume Resistivity | 106 | Z | Mohm.cm | A | ASTM D 257 |
| Surface Resistivity | 107 | Z | Mohm | A | ASTM D 257 |
| Tensile Modulus | 828(120) | X,Y | MPa(kpsi) | 23℃ | ASTM D 638 |
| Ultimate Stress | 6.9(1.0) | X,Y | MPa(kpsi) |
| Ultimate Strain | 7.3 | X,Y | % |
| Compressive Modulus | 2482(360) | Z | MPa(kpsi) | | ASTM D 638 |
| Moisture Absorption | 0.02 | | % | D48/50 | IPC-TM-650 2.6.2.1
ASTM D 570 |
| Thermal Conductivity | 0.6 | | W/m/k | 80℃ | ASTM C518 |
Coefficient of Thermal Expansion
(-55 to 288℃) | 16
16
24 | X
Y
Z | ppm/℃ | 23℃/50% RH | IPC-TM-650 2.4.41 |
| Td | 500 | | ℃ TGA | | ASTM D 3850 |
| Density | 2.1 | | gm/cm3 | | ASTM D 792 |
| Specific Heat | 0.93(0.22) | | j/g/k
(BTU/ib/OF) | | Calculated |
| Copper Peel | 8.9(1.6) | | Ibs/in.(N/mm) | | IPC-TM-650 2.4.8 |
| Flammability | V-0 | | | | UL 94 |
| Lead-free Process Compatible | Yes | | | | |
2. Reliable Construction and Dimensional Stability:
- Multi-Layer Board Construction: The RT/duroid 6002 PCB is designed for multi-layer board constructions, offering excellent mechanical and electrical properties for reliable performance.
- Tight Thickness Control: The PCB stackup features a precise thickness of 40mil (1.016mm), ensuring consistent performance and compatibility with your design requirements.
- Dimensional Stability: Enjoy excellent dimensional stability, allowing for accurate integration of components and reliable operation over time.
- Immersion Gold Surface Finish: The PCB surface is coated with immersion gold, providing excellent conductivity and protecting against oxidation, ensuring long-term reliability.
3. Rigorous Quality Assurance:
- IPC-Class-2 Standard: This PCB complies with the IPC-Class-2 standard, guaranteeing adherence to stringent quality requirements.
- 100% Electrical Test: Each PCB undergoes a thorough 100% electrical test before shipment, ensuring that only the highest quality products reach your hands.
- Gerber RS-274-X Artwork: The PCB artwork is supplied in Gerber RS-274-X format, facilitating seamless integration into your manufacturing processes.
- Global Availability: This PCB is readily available worldwide, ensuring accessibility for PCB engineers and designers alike.
4. PCB Statistics:
- Components: This PCB supports up to 25 components, providing flexibility for your design requirements.
- Total Pads: The PCB features 64 pads, allowing for efficient connectivity and integration of components.
- Thru Hole and SMT Pads: With 41 thru hole pads and 23 top SMT pads, this PCB accommodates various component types and assembly methods.
- Vias: This PCB includes 42 vias, enabling efficient signal routing and connectivity.
- Nets: This PCB supports 2 nets, allowing for organized and optimized signal flow.
| PCB Material: | Ceramic-filled PTFE composite |
| Designation: | RT/duroid 6002 |
| Dielectric constant: | 2.94 ±0.04 (process) |
| 2.94 (design) |
| Layer count: | 2 Layer, Multilayer |
| Copper weight: | 0.5oz (17 µm), 1oz (35µm), 2oz (70µm) |
| PCB thickness: | 10mil (0.254mm), 20mil (0.508mm) |
| 30mil (0.762mm), 60mil (1.524mm), 120mil (3.048mm) |
| PCB size: | ≤400mm X 500mm |
| Solder mask: | Green, Black, Blue, Yellow, Red etc. |
| Surface finish: | Bare copper, HASL, ENIG, Immserion Silver, OSP etc.. |
5. Wide Range of Applications:
The RT/duroid 6002 PCB is suitable for a variety of high-frequency applications, including:
- Phased Array Antennas: Achieve precise beam steering and high-speed data transmission in phased array antenna systems.
- Radar Systems: Benefit from exceptional signal integrity and reliable performance in ground-based and airborne radar systems.
- GPS Antennas: Ensure accurate positioning and reliable GPS signal reception with the RT/duroid 6002 PCB.
- Power Backplanes: Experience efficient power distribution and low-loss performance in power backplane applications.
- Commercial Airline Collision Avoidance: Enhance safety and communication in commercial airline collision avoidance systems.
- Beam Forming Networks: Achieve optimal signal processing and beamforming capabilities with the RT/duroid 6002 PCB.
To summarize, the Rogers RT/duroid 6002 PCB is a superior choice for high-frequency applications due to its exceptional performance, low dielectric constant, and impressive mechanical properties. Its reliable construction, dimensional stability, and compatibility with multi-layer board configurations make it well-suited for demanding applications across various industries. Rest assured that the RT/duroid 6002 PCB will deliver the performance you need to fully unleash the potential of your high-frequency designs.
Product Tags:
|
|

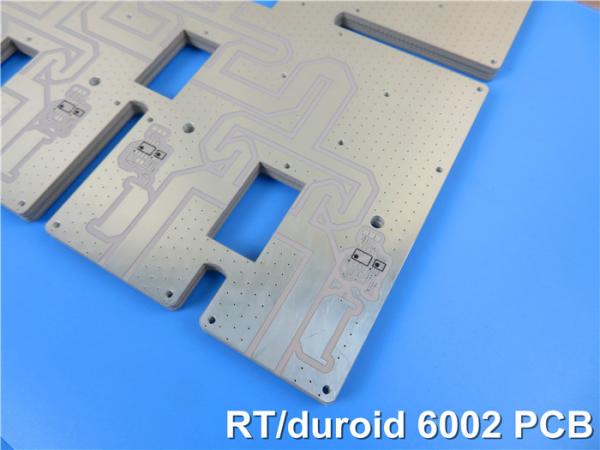

1OZ RT duroid 6002 40mil Thick Immersion Gold PCB Images
|
